ABS High Efficiency Evaporative Cooling Tower For 200-300 Square Meter Space

브랜드 이름:	Wotech
모델 번호:	WBC-19.8C-B-S
MOQ:	1
가격:	협상 가능
포장에 대한 세부 사항:	Polywood Pallet
지불 조건:	T/T，L/C AT SIGHT

자세한 정보

제품 설명

자세한 정보

Place of Origin:

China

애프터 판매 서비스 제공:

무료 예비 부품

운영 언어:

애플리케이션:

차고, 상업

로고/패턴:

실크 스크린 인쇄

전원 유형:

전기 같은

냉각/가열:

제품 이름:

전원 공급 장치:

380-415V/3PH/50Hz

R-410A

wotech

냉각 용량:

18.5kW

냉각 바람

<63db (a)

Supply Ability:

800 SETS/DAY

강조하다:

ABS evaporative cooling tower

high efficiency cooling system

cooling tower for 200-300 sqm

제품 설명

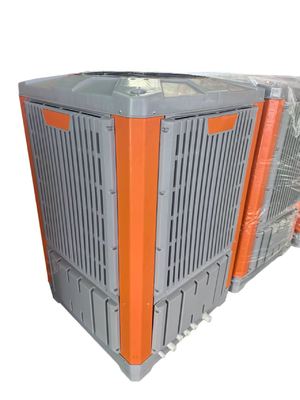

ABS High Efficiency Evaporative Cooling Tower For 200-300 Square Meter Space

WVotech's high-etticiency evaporative cooling towerintegrates cooling, dehumidification, and air delivery. lt usesa once-through heat exchange mode, where hot and humidair is quickly discharged outside through the internalstructure, and fresh outdoor air is continuously supplied forsecondary cooling. This system is especially effective forlarge indoor spaces with high ceilings. Typically, one unitcovers 200-300 square meters.

Wide Range of Applications —Ideal for Cooling Large Spaces

Product Description

Specification

Model No.		WBC-19.8C-B-S
Rated cooling capacity	kW	32
Rated input power	kW	6.3
Rated input current	A	10.5
Maximum input current	A	14.5
Maximum input power	kW	7.5
Power supply	V~Hz	380V~50Hz
Operate Temperature	℃	10℃~45℃
Inlet and outlet pipe diameter	inch	G1.5"
Noise	dB(A)	≤63dB(A)
Air supply distance	m	13
Maximum air volume	m³	4500
Water side pressure Drop	Kpa	50
Product Size	mm	10006502080
Package Size	mm	10206702200
Net Weight	kg	190

The data above subject to change without prior notice.

Application Scenarios

Recommended Applications

1.Places with high occupancy or short-term concentration needing rapid cooling: auditoriums,

meeting rooms, classrooms, schools, canteens, gyms, exhibition halls, manufacturing plants, toy

factories, and marketplaces.

2.Heat-intensive industrial settings: machine rooms, electrical control rooms, mechanical workshops,

injection molding, printing, food processing, glass, textiles, electronics, and home appliance

production.

3.Commercial spaces needing temperature control: supermarkets, internet cafés, entertainment

venues, storage rooms.

4.Agricultural R&D centers and greenhouses requiring controlled temperature and humidity.

5.Applications requiring precise temperature control: food processing, dairy production, water

purification, pharmaceuticals, greenhouses, mushrooms, tea, chemicals, and lab equipment.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Guangdong Wotech Renewable Energy & Technology Co., Ltd.(hereinafter referred to as Wotech) was founded in 2005, integrating research and development, manufacturing, marketing, and after-sales service of heat pumps. At present, Wotech has three production bases in Shunde, Zhaoqing and Heyuan, Covering covering 25, 000 square meters. With state-of-the-art automated production lines, and a modern and spacious office complex with its very own testing laboratories, making Wotech one of the most advanced air source heat pump suppliers in China. Through comprehensive planning and persistent study over the past 18 years, Wotech is awarded as one of the top 10 heat pump leading brands in China and the top 10 Chinese exporters to more than 60 countries overseas. Wotech has a perfect process in customer service and pays excellent attention to details. Wotech is specialized in OEM/ODM projects, designing tailored air source heat pump products for various high-end markets. Moreover, in order to satisfy more and more complex and demanding markets, customized solutions for residential and commercial swimming pool heating, house heating/cooling, and hot water combined systems can be made to our partners for intelligent applications. Wotech, with many years of heat pump export experience, sets up a top international quality control system to achieve the belief of making the best quality heat pumps for global users. FOSHAN SHUNDE HUAMING RENEWABLE ENERGY&TECHNOLOGY CO.,LTD. (hereinafter referred to as DUHM) is a subsidiary of Wotech, which was founded in 2011. In 2015, Wotech completed shareholding reform and became the 1st heat pump public company in 2016, with stock code 835751. In 2019, Wotech laboratory is accredited CNAS (China National Accreditation Service for Conformity Assessment) and awarded as the "Leading Brand of Heat Pump" by the Chinese Heat Pump Association. In 2022, Wotech is Certified for PED ( The Pressure Equipment Directive, ESRs), which is compulsory certification for heat pumps in EU market. We leverage renewable energy and cutting-edge intelligent technologies to deliver efficient solutions, working towards a sustainable future for all.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2005,sell to Domestic Market(35.00%),Western Europe(13.00%),Eastern Europe(9.00%),North America(8.50%),Oceania(6.00%),Southern Europe(6.00%),Africa(5.00%),Southeast Asia(4.00%),Northern Europe(4.00%),South America(3.00%),Central America(3.00%),South Asia(2.00%),Mid East(1.00%),Eastern Asia(0.50%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
heat pump,air to water heat pump,heat pump water heater,swimming pool heat pump,air source heat pump

4. why should you buy from us not from other suppliers?
19+ Years Experice on heat pump products

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
